Machine Learning at Scale with Python¶
- Andrea Zonca
- 20 March 2014
- at San Diego Supercomputer Center
- San Diego Data Science meetup
Machine Learning at Scale with Python¶
- Setup StarCluster to launch EC2 instances
- Running IPython Notebook on Amazon EC2
- Running single node Machine Learning jobs using multiple cores
- Distributing jobs with IPython parallel to multiple EC2 instances
Machine Learning at Scale with Python¶
- Slides available at zonca.github.io/machine-learning-at-scale-with-python or http://bit.ly/ml-ec2
- Slides are an
IPython notebook - Available in executable notebook format on github.com/zonca/machine-learning-at-scale-with-python
- Notebook on nbviewer at http://bit.ly/ml-ec2-ipynb
Setup virtual environment¶
Easier to just run the following commands at a terminal
In [1]:
%%bash
# Miniconda allows to download binary instead of compiling like pip
# get Miniconda from http://conda.pydata.org/miniconda.html
wget http://repo.continuum.io/miniconda/Miniconda-3.0.5-Linux-x86_64.sh
bash Miniconda-3.0.5-Linux-x86_64.sh
conda create -n pysc --yes ipython pyzmq tornado jinja2 pandas pygments pip pycrypto
source activate pysc
pip install --upgrade starcluster
Then open the ipython notebook within that conda environment, i.e. activate and run "ipython notebook"
StarCluster configuration file¶
In [1]:
from ConfigParser import ConfigParser
config = ConfigParser()
StarCluster configuration: credentials¶
- Login at https://console.aws.amazon.com/iam/home?#users
- Create new user
- Download credentials as
credentials.csv - Add Full EC2 and S3 permissions under Permissions
In [2]:
import pandas as pd
# extract first row of csv
credentials = pd.read_csv("credentials.csv").ix[0]
In [3]:
config.add_section("aws info")
config.set("aws info", "aws_access_key_id", credentials["Access Key Id"])
config.set("aws info", "aws_secret_access_key", credentials["Secret Access Key"])
StarCluster configuration: key pairs¶
- From EC2 console: https://console.aws.amazon.com/ec2
- Click on Key Pairs
- Create new Key Pair named
starcluster - Move
starcluster.pemin your working folder - Set permissions:
chmod 400 starcluster.pem
In [4]:
# key pairs are region-specific
config.set("aws info", "aws_region_name", "us-west-2")
config.set("aws info", "aws_region_host", "ec2.us-west-2.amazonaws.com")
config.add_section("keypair starcluster")
config.set("keypair starcluster", "key_location", "starcluster.pem")
In [20]:
import os
import os.path
def write_sc_conf(sc_conf):
"""Write starcluster configuration to ~/.starcluster/config"""
folder = os.path.join(os.path.expanduser("~"), ".starcluster")
try:
os.makedirs(folder)
except:
pass
with open(os.path.join(folder, "config"), "w") as f:
config.write(f)
In [21]:
write_sc_conf(config)
Available starcluster images¶
In [40]:
%%bash
starcluster listpublic | grep 64
StarCluster configuration: cluster¶
In [23]:
sec = "cluster pyec2"
config.add_section(sec)
config.set(sec, "keyname", "starcluster")
config.set(sec, "cluster_size", 1)
config.set(sec, "cluster_user", "ipuser")
config.set(sec, "disable_queue", True)
ami = "ami-706afe40"
instance = "t1.micro"
for name in ["master", "node"]:
config.set(sec, name + "_image_id", ami)
config.set(sec, name + "_instance_type", instance)
In [24]:
config.add_section("global")
config.set("global", "default_template", "pyec2")
In [25]:
write_sc_conf(config)
StarCluster configuration: EBS volume¶
In []:
%%bash
starcluster createvolume -n ebs1gbwest2a -i ami-fa9cf1ca --detach-volume 1 us-west-2a
StarCluster - (http://star.mit.edu/cluster) (v. 0.95.2)
Software Tools for Academics and Researchers (STAR)
Please submit bug reports to starcluster@mit.edu
>>> No keypair specified, picking one from config...
>>> Using keypair: starcluster
>>> Creating security group @sc-volumecreator...
>>> No instance in group @sc-volumecreator for zone us-west-2a, launching one now.
Reservation:r-eb9f81e2
>>> Waiting for volume host to come up... (updating every 30s)
>>> Waiting for all nodes to be in a 'running' state...
1/1 |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||| 100%
>>> Waiting for SSH to come up on all nodes...
1/1 |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||| 100%
>>> Waiting for cluster to come up took 0.606 mins
>>> Checking for required remote commands...
>>> Creating 1GB volume in zone us-west-2a
>>> New volume id: vol-53829851
>>> Waiting for vol-53829851 to become 'available'...
>>> Attaching volume vol-53829851 to instance i-635cbd6b...
>>> Waiting for vol-53829851 to transition to: attached...
>>> Formatting volume...
Filesystem label=
OS type: Linux
Block size=4096 (log=2)
Fragment size=4096 (log=2)
Stride=0 blocks, Stripe width=0 blocks
65536 inodes, 262144 blocks
13107 blocks (5.00%) reserved for the super user
First data block=0
Maximum filesystem blocks=268435456
8 block groups
32768 blocks per group, 32768 fragments per group
8192 inodes per group
Superblock backups stored on blocks:
32768, 98304, 163840, 229376
Allocating group tables: done
Writing inode tables: done
Creating journal (8192 blocks): done
Writing superblocks and filesystem accounting information: done
mke2fs 1.42 (29-Nov-2011)
>>> Detaching volume vol-53829851 from instance i-635cbd6b
>>> Not terminating host instance i-635cbd6b
>>> Your new 1GB volume vol-53829851 has been created successfully
*** WARNING - There are still volume hosts running: i-635cbd6b
>>> Creating volume took 0.947 mins
In [28]:
config.add_section("volume data")
# this is the Amazon EBS volume id
config.set("volume data", "volume_id", "vol-53829851")
# the path to mount this EBS volume on
# (this path will also be nfs shared to all nodes in the cluster)
config.set("volume data", "mount_path", "/data")
config.set("cluster pyec2", "volumes", "data")
In [29]:
write_sc_conf(config)

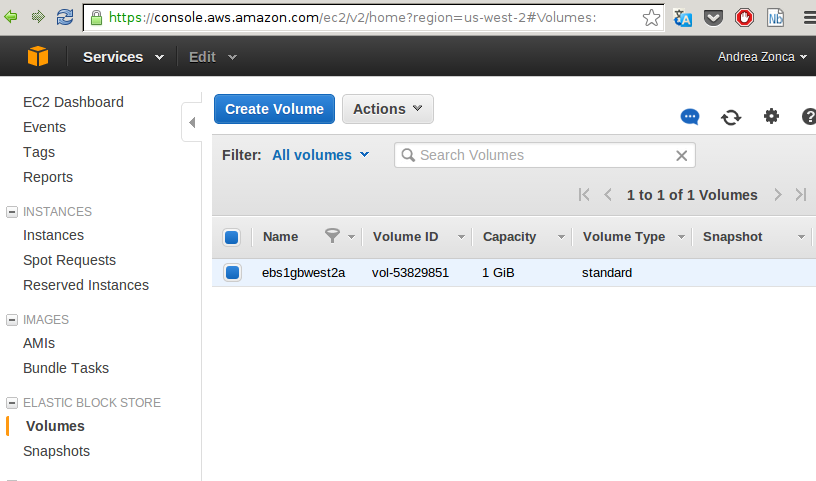

AWS volume
StarCluster configuration: IPython¶
In [30]:
sec = "plugin ipcluster"
config.add_section(sec)
config.set(sec, "setup_class", "starcluster.plugins.ipcluster.IPCluster")
config.set(sec, "enable_notebook", True)
# set a password for the notebook for increased security
config.set(sec, "notebook_passwd", "mysupersecretpassword")
# store notebooks on EBS!
config.set(sec, "notebook_directory", "/data")
# pickle is faster for communication than the default JSON
config.set(sec, "packer", "pickle")
config.add_section("plugin pypackages")
config.set("plugin pypackages", "setup_class", "starcluster.plugins.pypkginstaller.PyPkgInstaller")
config.set("plugin pypackages", "packages", "scikit-learn, psutil")
config.set("cluster pyec2", "plugins", "pypackages, ipcluster")
In [31]:
write_sc_conf(config)
Launch a single instance¶
In [32]:
%%bash
starcluster start -s 1 pyec2
In [37]:
%%bash
starcluster sshmaster -A pyec2 # -A use local keys remotely
In [39]:
%%bash
starcluster terminate -c pyec2 # -c does not prompt for confirm
Running scikit-learn on a single instance on EC2¶
See example notebook on face recognition run on a t1.micro instance (half GB RAM)
Most interesting instance types¶
- Micro for testing: t1.micro, 1 core, 0.6GB RAM, just EBS disk, 0.02 dollars/h
- Medium size instance: c3.2xlarge, 8 cores, 15GB RAM, 2 x 80GB SSD at 0.6 dollars/h
- Current largest instance: c3.8xlarge, 32 cores, 60GB RAM, 2 x 320GB SSD at 2.4 dollars/h
Running scikit-learn on a single instance on EC2: workflow¶
- launch t1.micro instance with starcluster
rsyncdata from local drive to/data- launch c3.2xlarge or c3.8xlarge
- connect to the notebook
- upload local notebook by dragging it ot the dashboard
- run and debug interactively
Running scikit-learn on a single instance on EC2: multi-core¶
Supported out-of-the-box by scikit-learn:
sklearn.cluster.KMeans(n_jobs=-1)sklearn.ensemble.RandomForestClassifier(n_jobs=-1)
Just set n_jobs to the number of processes or -1 for automatically set it to the number of cores.
Multi-core support provided by joblib: https://pythonhosted.org/joblib/parallel.html
Using EC2 spot instances¶
- bid on extra EC2 capacity, same type of instances
- save up to 5x!
- market with fluctuating price based on demand
- if price raises over your bid, instance gets killed
- no charge for the last portion of an hour if killed
- e.g. price is 0.2/h, I bid 0.5/h, I pay 0.2/h, if price -> 0.4/h, just pay more, if price -> 0.55/h, instance killed
In [15]:
%%bash
starcluster spothistory c3.2xlarge
On-demand price was 0.6/h, so saving about a factor of 4.
Current largest instance: c3.8xlarge, at 2.4/h , was 0.5/h this morning!
In []:
%%bash
starcluster start -s 1 --force-spot-master -b 0.5 -I c3.2xlarge singlenode
Distributed scikit-learn on EC2 with IPython parallel¶
- Most suitable for cross-validation and hyperparameters optimizations, which are intrinsecally trivially parallel jobs
- Based on Olivier Grisel ML tutorial
Show local example to understand ipcontroller, ipengines, client
Distributed scikit-learn on EC2 with IPython parallel: launch cluster¶
In []:
%%bash
starcluster start -c pyec2 -s 5 -b 0.5 -I c3.2xlarge fivenodescluster
Distributed scikit-learn on EC2 with IPython parallel: Distribute Cross-Validation¶
- Open IPython Notebook on the master node
In []:
def compute_evaluation(filename, model, params):
"""Function executed by a worker to evaluate a model"""
# All module imports should be executed in the worker namespace
from sklearn.externals import joblib
X_train, y_train, X_validation, y_validation = joblib.load(
filename, mmap_mode='c')
model.set_params(**params)
model.fit(X_train, y_train)
validation_score = model.score(X_validation, y_validation)
return validation_score
In [17]:
import numpy as np
svc_params = {
'C': np.logspace(-1, 2, 4),
'gamma': np.logspace(-4, 0, 5),
}
In [23]:
from sklearn.grid_search import ParameterGrid
list(ParameterGrid(svc_params))
Out[23]:
In [24]:
len(list(ParameterGrid(svc_params)))
Out[24]:
In []:
def compute_evaluation(filename, model, params):
"""Function executed by a worker to evaluate a model"""
# All module imports should be executed in the worker namespace
from sklearn.externals import joblib
X_train, y_train, X_validation, y_validation = joblib.load(
filename, mmap_mode='c')
model.set_params(**params)
model.fit(X_train, y_train)
validation_score = model.score(X_validation, y_validation)
return validation_score
In []:
from IPython.parallel import Client
rc = Client()
# create the balanced view object
lview = rc.load_balanced_view()
tasks = []
for each in svc_params:
tasks.append(lview.apply_async(compute_evaluation, "data/input.pkl", model_1, each))
Monitor progress¶
In []:
def progress(tasks):
return np.mean([task.ready() for task in tasks])
In []:
print("Tasks completed: {0}%".format(100 * progress(tasks)))
In []:
def find_best(tasks, n_top=5):
"""Compute the mean score of the completed tasks"""
scores = [t.get() for t in tasks if t.ready()]
return sorted(scores, reverse=True)[:n_top]
In []:
print("Tasks completed: {0}%".format(100 * progress(tasks)))
find_best(tasks)
Distributed scikit-learn on EC2 with IPython parallel: Optimizations¶
- Read data from
EBSoverNFSdoes not scale, so large data and more than few tens of engines better use S3.
StarClustersets number of engines equal to number of cores, we can modify to have less -> more memory- or combination of Parallel and multi-core
- Also, use just 1 engine per node to copy data from S3 to local disk, then
memorymapto share across engines
- Oliver Grisel has scripts for automating the distribution of tasks, see
model_selection.RandomizedGridSeach: https://github.com/ogrisel/parallel_ml_tutorial/
SDSC Cloud¶
- Based on OpenStack
- Storage (like S3) already available also to Industry: cloud.sdsc.edu
- In the next few months also cloud instances (like EC2) based on OpenStack Nova
- Local support from SDSC staff
Thank you!¶
- twitter.com/andreazonca
- zonca.github.io
- email on
sdsc.edu:zonca
Distributed scikit-learn on EC2 with IPython parallel: More performance¶
In []:
svc_params = {
'C': np.logspace(-1, 2, 4),
'gamma': np.logspace(-4, 0, 5),
}
In []:
from sklearn.externals import joblib
from sklearn.cross_validation import ShuffleSplit
import os
def persist_cv_splits(X, y, n_cv_iter=5, name='data',
suffix="_cv_%03d.pkl", test_size=0.25, random_state=None):
"""Materialize randomized train test splits of a dataset."""
cv = ShuffleSplit(X.shape[0], n_iter=n_cv_iter,
test_size=test_size, random_state=random_state)
cv_split_filenames = []
for i, (train, test) in enumerate(cv):
cv_fold = (X[train], y[train], X[test], y[test])
cv_split_filename = name + suffix % i
cv_split_filename = os.path.abspath(cv_split_filename)
joblib.dump(cv_fold, cv_split_filename)
cv_split_filenames.append(cv_split_filename)
return cv_split_filenames
In []:
from sklearn.datasets import load_digits
digits = load_digits()
digits_split_filenames = persist_cv_splits(digits.data, digits.target,
name='digits', random_state=42)
In []:
def compute_evaluation(cv_split_filename, model, params):
"""Function executed by a worker to evaluate a model on a CV split"""
# All module imports should be executed in the worker namespace
from sklearn.externals import joblib
X_train, y_train, X_validation, y_validation = joblib.load(
cv_split_filename, mmap_mode='c')
model.set_params(**params)
model.fit(X_train, y_train)
validation_score = model.score(X_validation, y_validation)
return validation_score
In []:
def grid_search(lb_view, model, cv_split_filenames, param_grid):
"""Launch all grid search evaluation tasks."""
all_tasks = []
all_parameters = list(ParameterGrid(param_grid))
for i, params in enumerate(all_parameters):
task_for_params = []
for j, cv_split_filename in enumerate(cv_split_filenames):
t = lb_view.apply(
compute_evaluation, cv_split_filename, model, params)
task_for_params.append(t)
all_tasks.append(task_for_params)
return all_parameters, all_tasks
In []:
from sklearn.svm import SVC
from IPython.parallel import Client
client = Client()
lb_view = client.load_balanced_view()
model = SVC()
svc_params = {
'C': np.logspace(-1, 2, 4),
'gamma': np.logspace(-4, 0, 5),
}
all_parameters, all_tasks = grid_search(
lb_view, model, digits_split_filenames, svc_params)
In []:
def find_best(all_parameters, all_tasks, n_top=5):
"""Compute the mean score of the completed tasks"""
mean_scores = []
for param, task_group in zip(all_parameters, all_tasks):
scores = [t.get() for t in task_group if t.ready()]
if len(scores) == 0:
continue
mean_scores.append((np.mean(scores), param))
return sorted(mean_scores, reverse=True)[:n_top]
find_best(all_parameters, all_tasks)
